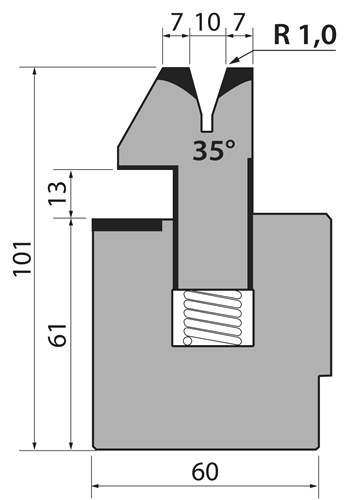

Name: S101.35.10 Spring-loaded Hemming Dies
Brand: fbmtooling
SKU: S101.35.10
Availability: InStock
Rating: 5 (1 reviews)

Home > Amada Press Brake Tooling > Hemming dies

Description

Amada Press Brake Tooling
Whether the Amada top tools or Amada Bottom tools, both feature standard safety grooves to prevent tools from dropping. FBM is capable of meeting your needs. The following are the common types of Amada press brake tools. If you don’t find what you are looking for, please feel free to contact us.

compatible with press brake machines from:
ACL, Accurpress, AM Machinery, Amada, Atlantic, Adira, Baykal, BL, Boschert, Boutillon, Bystronic-Beyeler Euro-B, Coastone, Colgar, Darley, Dener, Deratech, Durmazlar, Ermaksan, Farina, Gade, Gasparini, Gizelis, Haco, Hindustan, Iturrospe, Jfy, JMT, LFK, Metfab, MVD, Nargesa, Newton, Oriance, Prima Power, Promecam, Rico, Safan, Salvagnini, Schiavi, SMD, Sorg, Somo, Vicla, Vimercati, Warcom, Yangli, Yawei, Ysd, etc.

Advantages
●According to our rich experience in press brake tooling production, the following two kinds of optimum materials are recommended to satisfy your high-quality requirements. Other required materials can also be customized to fit your specific needs.
● 42CrMo, tempered to 1100 - 1200 N / mm2
● C45, tempered to 800 - 850 N / mm2
●The hardness of the bending radius and intake radius can achieve 45-50RC.
●The Amada press brake tooling features high universality. After the length or bend angle is being adjusted or working together with the adapters, the press brake tooling is compatible with the widest variety of press brakes machines.

Tang
All Dies :
have base 60 mm, 90 mm or 120 mm
(look at each tool for more precise information)

Indications of precision ground surfaces:

Tool lengths and sectioning
Standard
Segmented tools are delivered in complete sets.
More lengths and sectionings are possible upon request.
Lengths without sectioning:835 mm,415 mm,900 mm
Lengths with sectioning:
■805 mm segmented (8 segments)

■795 mm segmented (10 segments)

TOP-System
Lengths without sectioning:525 mm
Lengths with sectioning:
■495 mm segmented (8 segments)

Modification: Tang Barl
To use the dies on other press brake machines a 10 mm groove is milled and a grounded wedge bar /tail is needed in the correct size.

Wedge Bar / Tail (W x H)	System
13 x 22 mm	Bystronic-Beyeler/Safan/Trumpf ect.
55 x 47 mm	Type EHT
12,7 x 21 mm	Type LVD
35 x 47 mm	Type Weinbrenner
