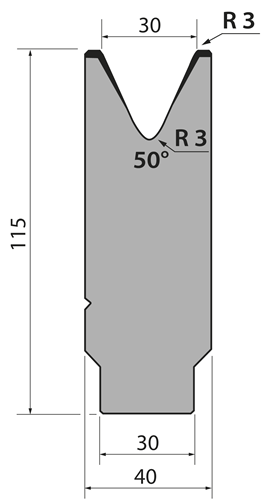

Name: M115.50.30
Brand: fbmtooling
SKU: M115.50.30
Availability: InStock
Rating: 5 (1 reviews)

Description

Colly Press Brake Tooling
FBM is capable of meeting your needs. The following are the common types of Colly press brake tooling. If you don’t find what you are looking for, please feel free to contact us.

Advantages
● According to our rich experience in press brake tooling production, the following two kinds of optimum materials are recommended to satisfy your high-quality requirements. Other required materials can also be customized to fit your specific needs.
● 42 CrMo4, tempered to 1100 - 1200 N / mm2
● C45, tempered to 800 - 850 N / mm2
● The hardness of the bending radius and intake radius can achieve 45-50RC.
● The American press brake tooling features high universality. After the length or bend angle is being adjusted or working together with the adapters, the press brake tooling is compatible with the widest variety of press brakes machines.

Tool lengths, sectioning and horn types
Standard
Segmented tools are delivered in complete sets. Single pieces are also available!
More lengths and sectioning are possible upon request.

Punches:
■ 1020 mm
■ 1250 mm segmented (15 segments: 100 Horn left, 30, 30, 30, 35, 40, 40, 45, 45, 50, 50, 55, 100, 100 Horn right)

Dies:
■ 1020 mm
■ 1250 mm segmented (14 segments: 100, 30, 30, 30, 35, 40, 40, 45, 45, 50, 50, 55, 500, 200)

Horn types:
