Home > Bystronic-Beyeler Press Brake Tooling > Radius tools
BPU-S
BPU-S BPU-S BPU-S BPU-S BPU-S BPU-S BPU-S BPU-S BPU-S BPU-S BPU-S BPU-S
  • BPU-S
  • BPU-S
  • BPU-S
  • BPU-S

BPU-S

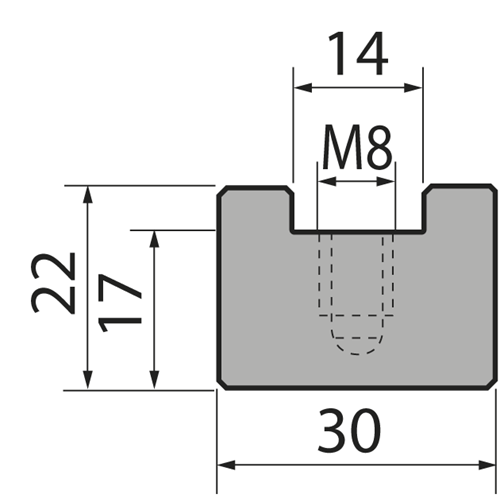

Item No.: BPU-S
Radii Tools: Ø 16-20,
Radii Tools: Ø 25-100
Add to Inquiry
Description
Description
Bystronic-Beyeler Press Brake Tooling
FBM is capable of meeting your needs. The following are the common types of Bystronic-Beyeler press brake tooling.which is compatible with press brake machines from Bystronic-Beyeler RFA, Bystronic-Beyeler RF, Bystronic-Beyeler R and Bystronic-Beyeler S, etc. If you don’t find what you are looking for, please feel free to contact us.

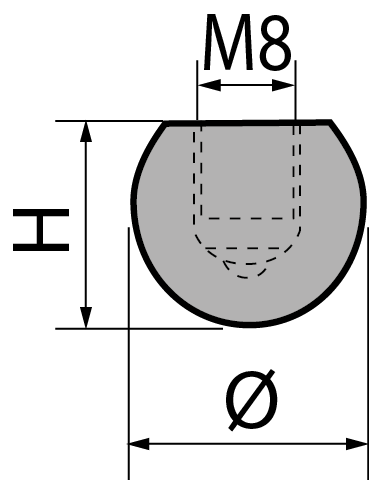

Radii Tools: Ø 16-20,

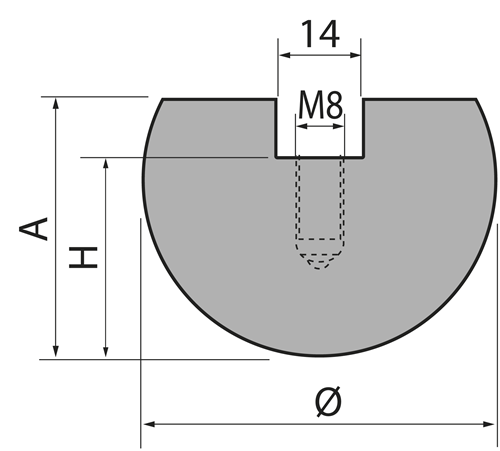

Radii Tools: Ø 25-100

model Ø(mm) H(mm) A(mm)
C13.08 16 13
C13.09 18 16
C16.10 20 16
C17.12 25 17 22
C20.15 30 20 27
C22.17 35 22 32
C24.20 40 24 34
C25.22 45 25 35
C29.25 50 29 39
C34.27 55 34 44
C34.30 60 34 44
C37.32 65 37 47
C45.35 70 45 55
C42.37 75 42 52
C45.40 80 45 55
C60.45 90 60 70
C70.50 100 70 80


Advantages
●According to our rich experience in press brake tooling production, the following two kinds of optimum materials are recommended to satisfy your high-quality requirements. Other required materials can also be customized to fit your specific needs.
● 42CrMo, tempered to 1100 - 1200 N / mm2
● C45, tempered to 800 - 850 N / mm2
●The hardness of the bending radius and intake radius can achieve 45-50RC.
●The Bystronic-Beyeler press brake tooling features high universality. After the length or bend angle is being adjusted or working together with the adapters, the press brake tooling is compatible with the widest variety of press brakes machines.

Tang
All Punches Type Bystronic-Beyeler :
Bystronic-Beyeler RFA Bystronic-Beyeler RF
Bystronic-Beyeler R
 		 Bystronic-Beyeler S
Indications of precision ground surfaces:


Tool lengths and sectioning
Standard
Segmented tools are delivered in complete sets.
More lengths and sectioning are possible upon request.
Lengths without sectioning:1000 mm,500 mm,508 mm,525 mm
Lengths with sectioning:
■1100 mm segmented BP (13 segments)

■1100 mm segmented BPR (9 segments)

■495 mm segmented (8 segments)
