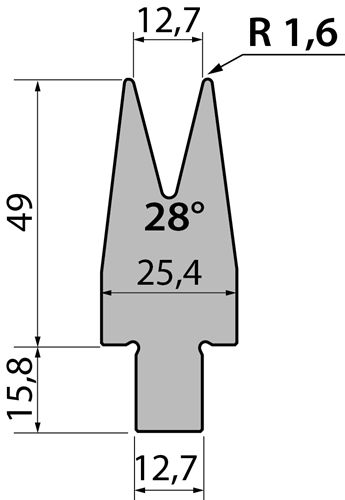

Name: ASD-28-500
Brand: fbmtooling
SKU: ASD-28-500
Availability: InStock
Rating: 5 (1 reviews)

Home > American Press Brake Tooling > Dies

Description

American Press Brake Tooling
FBM is capable of meeting your needs. The following are the common types of American press brake tooling. If you don’t find what you are looking for, please feel free to contact us.

Advantages
●According to our rich experience in press brake tooling production, the following two kinds of optimum materials are recommended to satisfy your high-quality requirements. Other required materials can also be customized to fit your specific needs.
● 42 CrMo4, tempered to 1100 - 1200 N / mm2
● C45, tempered to 800 - 850 N / mm2
●The hardness of the bending radius and intake radius can achieve 45-50RC.
●The American press brake tooling features high universality. After the length or bend angle is being adjusted or working together with the adapters, the press brake tooling is compatible with the widest variety of press brakes machines.

Tool lengths, sectioning and horn types
Standard
Segmented tools are delivered in complete sets. Single pieces are also available!
More lengths and sectioning are possible upon request.
Punches:
■838 mm
■415 mm segmented
■805 mm segmented (9 segments: 100 Horn left, 100, 50, 40, 20, 15, 10, 370, 100 Horn right)

Dies:
■838 mm
■415 mm segmented
■805 mm segmented (8 segments: 200, 50, 40, 20, 15, 10, 370, 100)

Horn Types:
